Linear Motors in Semiconductor and Inspection Equipment: When You Need More Than Ball Screws

1. Why Semiconductor and Inspection Push Motion So Hard

These applications are brutal on motion platforms:

• Nanometer-level positioning for lithography, wafer inspection, and overlay metrology
• High scanning speeds for AOI, mask inspection, panel inspection
• 24/7 uptime in temperature-controlled, low-vibration environments

In practice, that means your stage must:

• Accelerate fast, without exciting resonances
• Move with almost perfectly constant velocity during scan
• Stop and settle quickly, with minimal residual vibration
• Repeat this millions of times without visible wear

A traditional ball screw drive on a stiff lm guide / linear guide rail can cover a lot of ground. But as speeds and resolution climb, the mechanical limits of rotating systems become the bottleneck — and linear motor vs ball screw stops being a theoretical debate and becomes a yield problem.

---

2. What a Linear Motor Module Actually Changes

A linear motor is essentially a “flattened servo motor”:
the stator is your long primary track, and the mover (forcer) is your slider.

In a linear module for semiconductor equipment, that gives you a few concrete advantages:

• No screw, no nut, no backlash
  • Force is applied directly to the moving mass.
  • There is no mechanical transmission elasticity like in a long screw or belt.
• High acceleration with clean profiles
  • You can reach high speed quickly, without spinning a long rotating shaft.
  • Jerk-limited profiles from a good motion controller feel “cleaner” to the optics.
• Excellent velocity stability
  • Ideal for scan-type linear module for inspection machine where constant speed is critical to image quality.
• Lower wear
  • With proper lm guide and air bearings, friction is low and predictable; there’s no screw to wear out.

In short: you’re paying to remove mechanical “noise” between the motor and the payload.

---

3. Linear Motor vs Ball Screw: When Does It Make Sense?

If you’re in purchasing, it helps to translate “better performance” into a few concrete triggers.

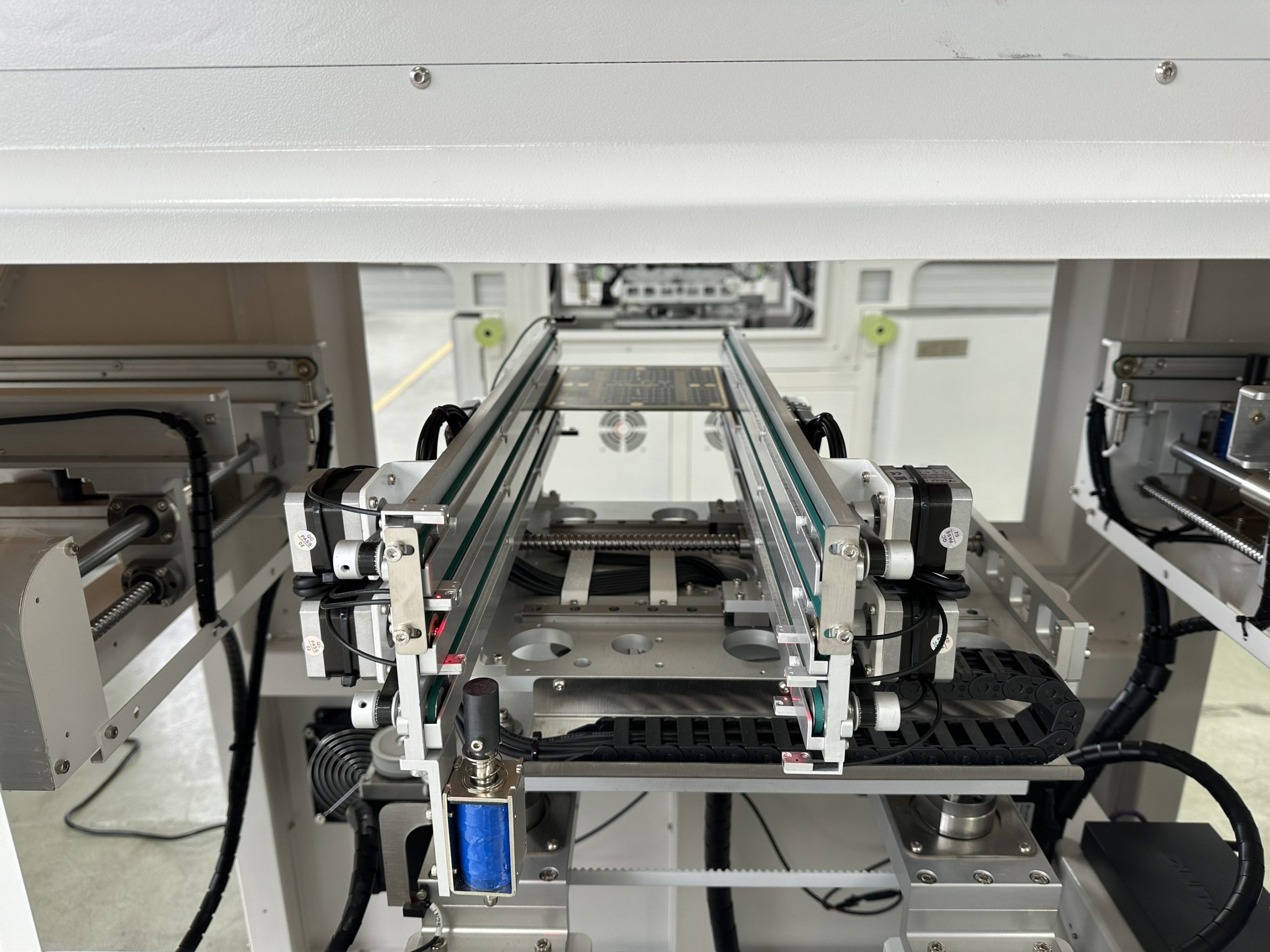

3.1 When a ball screw is still the right choice

A high-quality ball screw drive is still the workhorse for many axes in a multi-axis linear actuator system:

• Moderate strokes and speeds (e.g. 300–800 mm, non-scan moves)
• Axes that index, clamp, or load/unload – not continuous scanning
• Z-axes where gravity holding and stiffness matter more than insane speed

Examples:

• Wafer load/unload arms on an XYZ linear module platform feeding a process tool
• Z focus axes for inspection heads
• General linear module for automation tasks around the main stage

Here, the combination of ball screw, robust linear guide rail and a servo motor linear module is cost-effective and proven. You don’t need a linear motor everywhere.

3.2 When a linear motor starts to win

Look at a candidate axis and ask three questions:

1. Is it doing high-speed scanning or fine stepping over short distances?
   • Typical for AOI, mask inspection, wafer/panel scanning.
2. Is velocity ripple or tiny torque irregularity visible in your process?
   • For imaging, even small speed ripple shows up as banding or blur.
3. Is mechanical transmission (screw/belt) now the main source of vibration or resonance?
   • You’ve already optimized structure and control, but can’t hit the last spec.

If you answer “yes” to two or more, it’s usually time to seriously consider a linear motor module, at least for the primary axis.

A common compromise:

• Use a linear module for semiconductor equipment with linear motor on the main scan axis.
• Keep ball screw drive modules for orthogonal axes, stages, or coarse positioning.

---

4. System View: It’s Not Just the Motor

Dropping a linear motor into a weak structure is like putting racing tires on a wobbly cart. The rest of the platform has to follow.

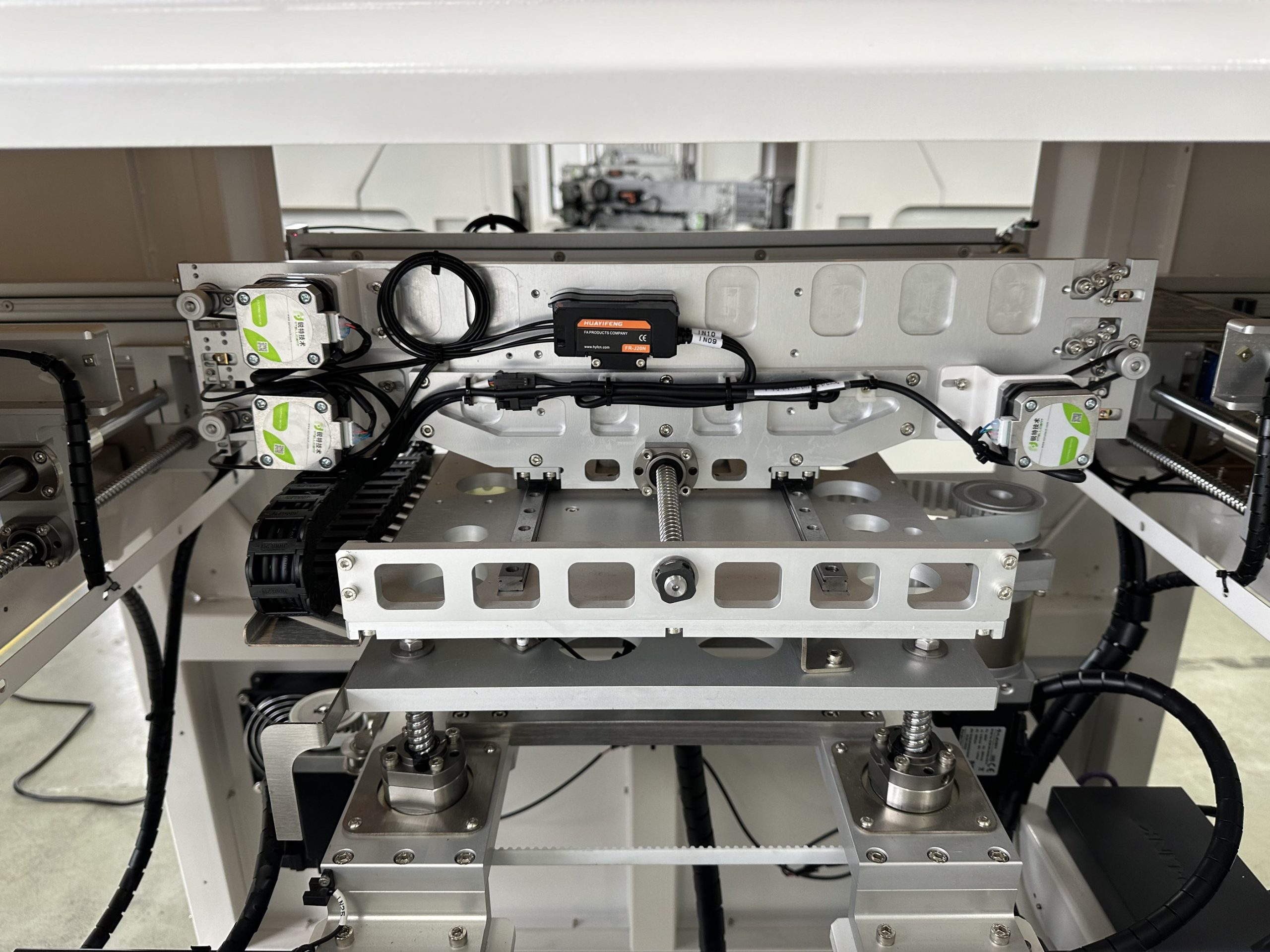

4.1 Mechanics around the linear motor

A good linear motor stage includes:

• Dimensioned lm guide / linear guide rails that can handle high side loads and moments
• Proper support bearings, end constraints, and a stiff base frame
• Thoughtful cable management for encoder, motor power, and IO

Especially in XYZ linear module platforms and 3-axis linear motion systems, cross-axes stiffness is critical. If the base bends or twists, you don’t get the benefit you paid for.

4.2 Motion controller and feedback

Linear motor stages are unforgiving of weak control:

• You need a motion controller that can handle advanced servo loops, feedforward, and jerk-limited profiles.
• High-resolution linear encoders are standard — and must be integrated cleanly in both hardware and software.
• In multi-axis use (e.g. a 2-axis gantry stage or synchronized XY scanning), multi-axis interpolation quality matters.

This is where working with a motion supplier who can deliver a complete stack — linear motor module + drive + motion controller — is often less painful than mixing vendors purely on linear module price.

---

5. Cleanrooms and Integration: More Than Just Specs

Semiconductor and inspection tools live in environments where:

• Any particle can be a yield loss
• Airflow patterns and cable routes matter
• Maintenance windows are expensive

So a linear module for semiconductor equipment or a linear module for inspection machine often needs:

• Cleanroom-friendly design
  • Minimal particle generation from guides and cables.
  • Grease and materials compatible with your cleanroom class.
• Smart mechanical form factor
  • Easy integration into tight machine spaces.
  • Mounting patterns that simplify custom linear actuator design when needed.
• Serviceability
  • Clear access for cleaning and lubrication.
  • Documentation for troubleshooting linear actuators without tearing down the whole tool.

A pure “spec sheet” comparison rarely shows these differences, but they strongly affect real-world uptime and total cost of ownership.

---

6. How Buyers and Engineers Should Talk About Linear Motor Projects

To make decisions that both engineering and purchasing can live with, try this workflow:

1. Classify the axis
   • Is this a scan axis, precision index, or coarse transfer?
   • Is it inside the most critical imaging/measurement loop, or around it?
2. Write a one-line duty statement
   • Example: “Move 4 kg payload over 450 mm at 1.5 m/s, ±0.1 μm repeatability, scan mode 24/7 in ISO cleanroom.”
3. Pose the “linear motor vs ball screw” question explicitly
   • Ask your potential linear module manufacturer: “With this duty, what are the trade-offs between a high-end ballscrew stage and a linear motor stage?”
4. Compare total cost, not just servo linear actuator cost
   • Include: performance, yield, commissioning time, maintenance, and risk of not meeting customer specs.

Suppliers who really understand linear module for semiconductor equipment won’t just say “linear motor is better”. They’ll show you where it matters and where you can safely stay with ball screws.
