What Is a Linear Motor Module and When Do You Really Need One?

1. What Is a Linear Motor Module?

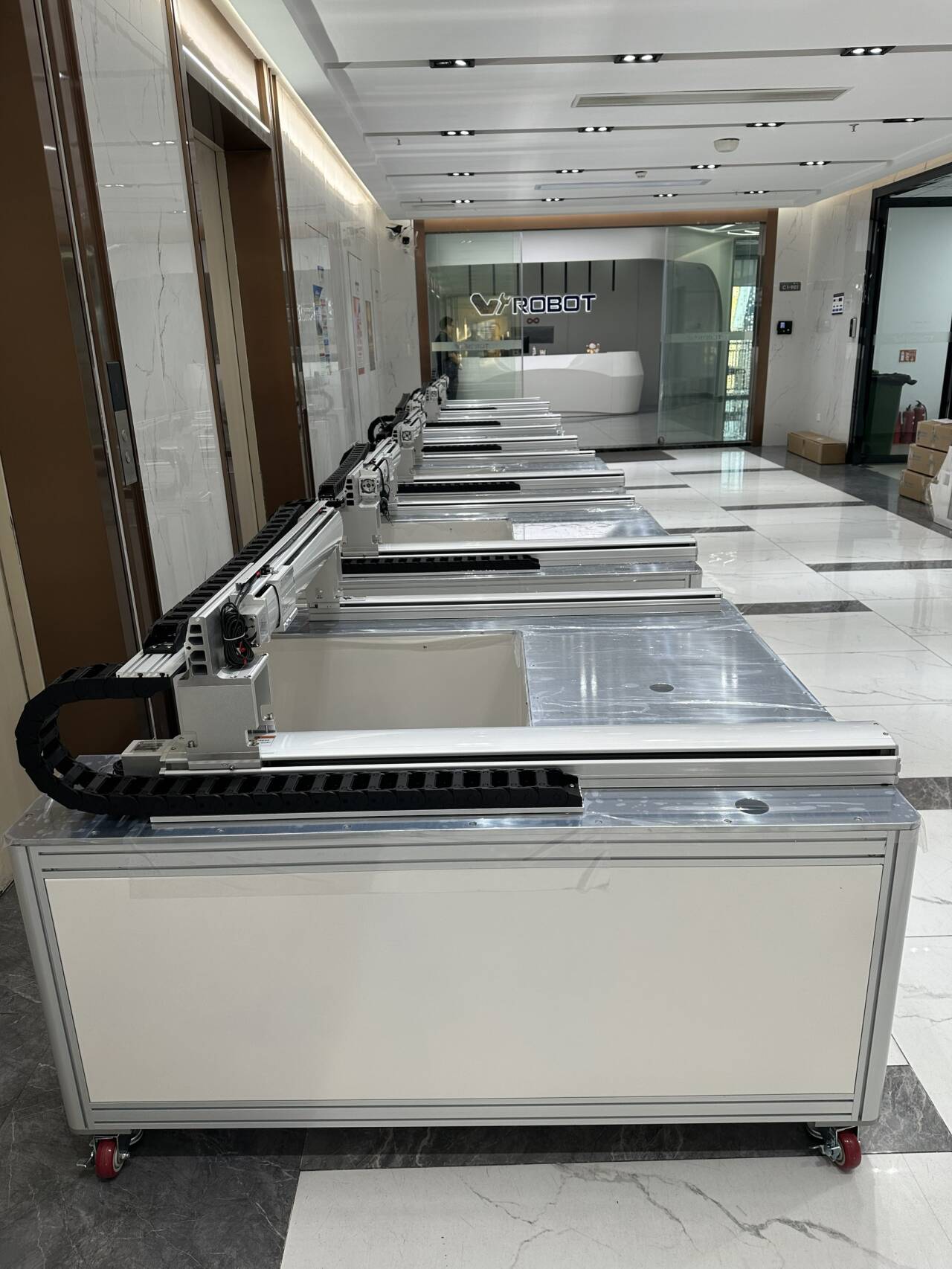

A linear motor module is a ready-made direct drive actuator that combines:

• A linear motor (stator + mover)
• Linear guideways
• A moving carriage for mounting the payload
• A rigid base profile or frame
• Often a linear encoder, cable management, and home/limit sensors

Instead of using a rotary motor plus ball screw or belt, the linear motor generates force in a straight line. The moving coil or forcer rides along a magnet track, creating motion without mechanical transmission elements.

You can think of it as a rotary servo motor “unrolled” into a straight line.

---

2. How a Linear Motor Module Works (Direct Drive Basics)

Most industrial linear motor modules are either iron-core or ironless designs.

2.1 Main components

1. Magnet track (stator)
   • Fixed to the base of the module
   • Contains a row of permanent magnets with alternating polarity
2. Forcer / coil unit (mover)
   • Mounted on the moving carriage
   • Contains windings powered by a servo drive
3. Linear guides
   • Support the moving carriage mechanically
   • Carry the load and maintain straightness
4. Linear encoder
   • Measures the actual position of the carriage with high resolution
   • Feedback is used by the servo drive for precise control

2.2 Working principle

When the servo drive energizes the coils:

1. Current in the windings interacts with the magnetic field on the track.
2. This interaction generates a Lorentz force that pushes the mover along the track.
3. By controlling current and phase precisely, the drive creates smooth, continuous motion.
4. The linear encoder reports the real position so the controller can correct any error instantly.

There is no screw, nut, belt, or gearbox between motor and load. That is why linear motor modules are often called direct drive actuators.

---

3. Linear Motor Module vs. Screw/Belt Axes

Before you decide whether you “really need” a linear motor, it helps to compare it with more familiar options.

3.1 Compared with ball-screw modules

Advantages of linear motor modules:

• No mechanical backlash from screws or nuts
• Very high acceleration and deceleration
• Smooth low-speed motion with no screw pitch variation
• Less mechanical wear, since there are fewer contact surfaces

Trade-offs:

• Higher initial cost (motor + encoder + drive)
• Require a more rigid machine frame; the axis can reveal structural weaknesses
• Sometimes need cooling or derating for high continuous forces

3.2 Compared with belt-driven modules

Advantages of linear motor modules:

• Much better repeatability and contour accuracy
• No belt stretch, so performance stays more stable over time
• Ideal for high speed positioning with complex motion profiles

Trade-offs:

• Higher cost and more complex control than a simple belt axis
• Shorter maximum stroke than some very long belt systems
• Sensitive to iron dust or metallic particles ( especially iron-core designs )

---

4. Types of Linear Motors Used in Modules

4.1 Iron-core linear motor

In an iron-core linear motor, the coil windings are wound around an iron lamination stack.

Characteristics:

• High force density (strong force in a compact size)
• Good efficiency
• Attractive for axes that must move heavy loads quickly

Points to watch:

• Magnetic attraction between mover and magnets creates cogging force and strong normal force.
• The machine structure must be rigid enough to handle this force without bending.
• In some designs, low-speed smoothness requires careful tuning.

4.2 Ironless linear motor

In an ironless linear motor, the coil is mounted without iron teeth; instead, it is suspended between two magnet tracks.

Characteristics:

• Very smooth motion with minimal cogging
• Lower attraction force between mover and magnets
• Excellent for high precision scanning and contouring

Points to watch:

• Lower force density than iron-core; you may need longer or multiple coils for the same thrust.
• Often slightly higher cost per unit of force.

Both types can be integrated into a linear motor module; the right choice depends on whether your priority is maximum thrust (iron-core) or ultra-smooth motion (ironless).

---

5. Key Specifications of Linear Motor Modules

When you look at a linear motor module datasheet, focus on these values:

5.1 Continuous and peak force

• Continuous force: the force the motor can deliver without overheating, based on cooling conditions.
• Peak force: the short-term force available for rapid acceleration.

Make sure continuous force covers your steady motion and process forces, and peak force is sufficient for your target acceleration.

5.2 Maximum speed

Linear motor modules can achieve very high speeds, but check:

• Rated maximum speed based on encoder limits and voltage
• Any limits caused by bearing life or mechanical design

5.3 Positioning accuracy and repeatability

Many linear motor modules offer:

• Very fine encoder resolution
• Excellent repeatability (often in the micron range, depending on encoder and mechanics)

Absolute accuracy depends on:

• Encoder type and pitch
• Straightness of the guide system
• Calibration and compensation in the control system

5.4 Stroke

Stroke is set by the length of the magnet track and guides. Compared with belt axes:

• Linear motor strokes are typically smaller but still sufficient for many applications, ranging from a few hundred millimeters to around a meter or more, depending on the design.

5.5 Thermal behavior

Because the motor generates heat directly under the payload:

• Check specifications for temperature rise at continuous force.
• Ensure that the machine layout allows heat dissipation or additional cooling if required.

---

6. When Do You Really Need a Linear Motor Module?

You do not need a linear motor module for every axis. In fact, many machines run perfectly with ball screws or belts. But there are situations where a linear motor gives clear advantages.

6.1 When cycle time really matters

If your machine’s value comes from moving quickly between many short positions, cycle time is critical.

Examples:

• High-throughput pick-and-place
• Fast inspection stations that scan small parts

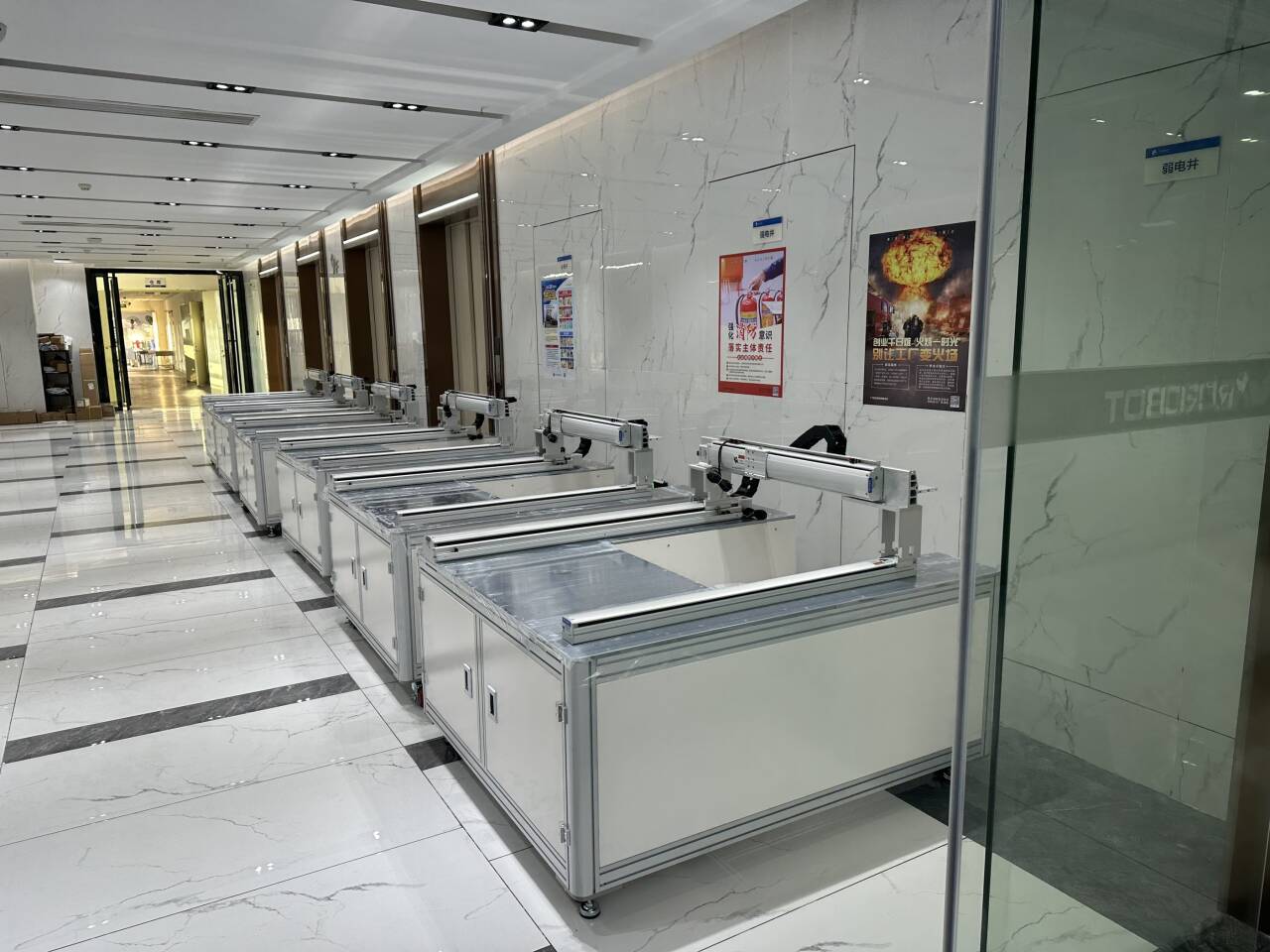

• Multi-head gantry systems placing or picking components

Linear motor modules:

• Reach high accelerations with smooth motion
• Reduce settling time at each position
• Help you achieve higher throughput without sacrificing positioning quality

6.2 When motion quality is part of the process

Some processes need extremely smooth motion:

• Scanning or line-scan imaging
• Laser marking, cutting, or micro-machining
• Precision dispensing along complex paths

In these cases, the absence of screw pitch error and belt vibration, combined with high-resolution encoders, makes a linear motor module attractive.

6.3 When you need stable performance over long periods

Because there is no screw, nut, or belt to wear, the core drive behavior of the linear motor remains consistent. Guides still need maintenance, but:

• No backlash increase from transmission components
• No belt stretch or tooth wear

For machines where long-term stability is important—such as measurement equipment or high-end production tools—this can be a strong argument for direct drive.

6.4 When a conventional drive has reached its limits

Sometimes you start with a ball-screw or belt axis and discover that:

• You can’t reach your required speed without vibration.
• Backlash compensation, pitch error mapping, or wear are hurting performance.
• The system requires frequent adjustment or maintenance to stay within spec.

If the machine value justifies it, upgrading to a linear motor module can simplify the mechanics and move complexity into the control system, where it is easier to manage.

---

7. When a Linear Motor Module Is Not the Right Choice

There are also many cases where a traditional actuator is still more suitable.

7.1 Cost-sensitive, medium-performance axes

If the axis:

• Has moderate speed and accuracy requirements
• Runs in a non-critical part of the machine
• Is part of a cost-sensitive project

a ball-screw or belt-driven module is usually sufficient and more economical.

7.2 Very long stroke with moderate dynamics

Conveyors or gantries with strokes of several meters often favor belt or rack-and-pinion drives, where linear motors would require long magnet tracks and become expensive.

7.3 Low duty cycle or simple point-to-point moves

For infrequently used axes or simple indexing tasks, the benefits of a linear motor may not offset the extra expense and complexity.

---

8. Practical Selection Checklist

When you are deciding whether to specify a linear motor module, walk through this brief checklist:

1. Motion profile
   • Is your axis limited by acceleration and settling time?
   • Do you need complex, smooth trajectories?
2. Accuracy and repeatability
   • Are you targeting micron-level performance?
   • Is contour accuracy important?
3. Stroke and load
   • Is the required stroke within typical linear motor ranges?
   • Can your machine frame provide the stiffness these actuators need?
4. Environment
   • Are there iron particles or aggressive contaminants?
   • Do you have plans for covers, bellows, or clean operation?
5. Budget and lifecycle costs
   • Can the project justify higher hardware and control costs?
   • Will improved throughput or yield offset the investment?

If several answers point toward high speed positioning, excellent motion quality, and tight tolerances, a linear motor module is a strong candidate.

---

9. Conclusion

A linear motor module is a direct drive actuator that uses a linear motor, encoder, and guide system to deliver high speed, smooth, and precise linear motion without mechanical transmission elements.

You really need one when:

• Cycle time and throughput are crucial
• Motion quality directly affects product quality
• Traditional screw or belt systems can no longer meet speed or precision targets

For other axes where requirements are moderate and budgets are tight, well-designed ball-screw or belt-driven modules remain reliable, efficient choices.
