1. Product Introduction
Multi axis solutions feature and utilize linear/circular interpolation and electronic gearing which enables a
constant speed while following the chosen XYZ axis contour. Ideal applications are measuring and testing
(Quality Control), pick and place, deposition, machining, scoring and cutting, to name a few.

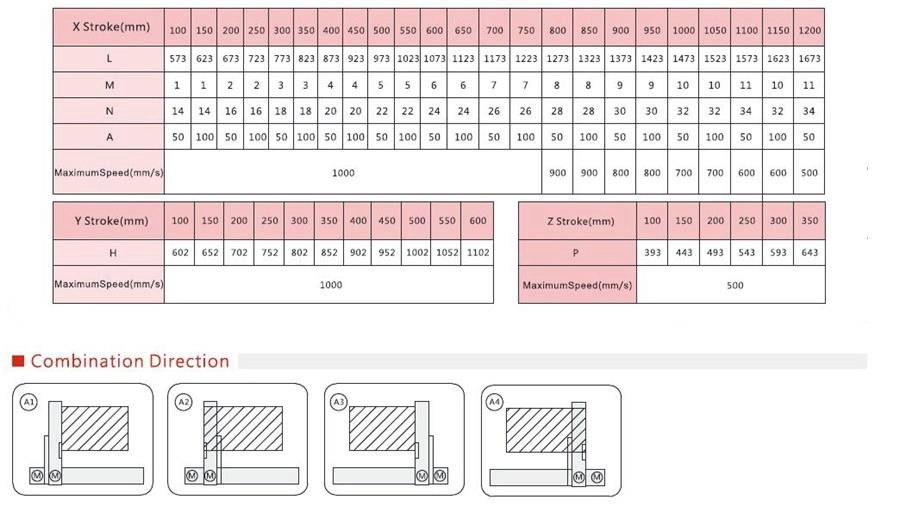

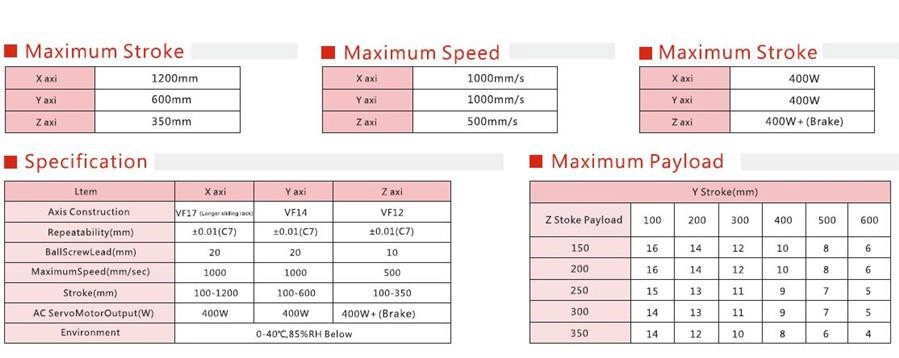

2. Product Parameter (specification)
3. Product feature and application：
Multi-axis systems with actuators enable total programmability of speed, position and force, all at the same time,
with an exceptional degree of accuracy and repeatability. These multi-axis systems offer a wide range of
solutions with a number of highly flexible control interfaces. When system integrators consider actuators, many

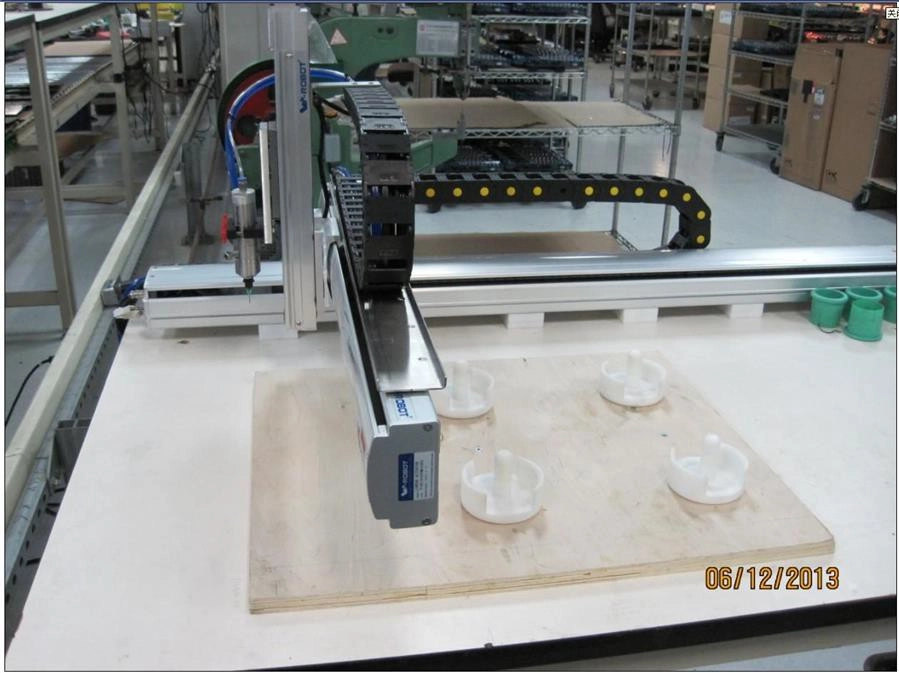

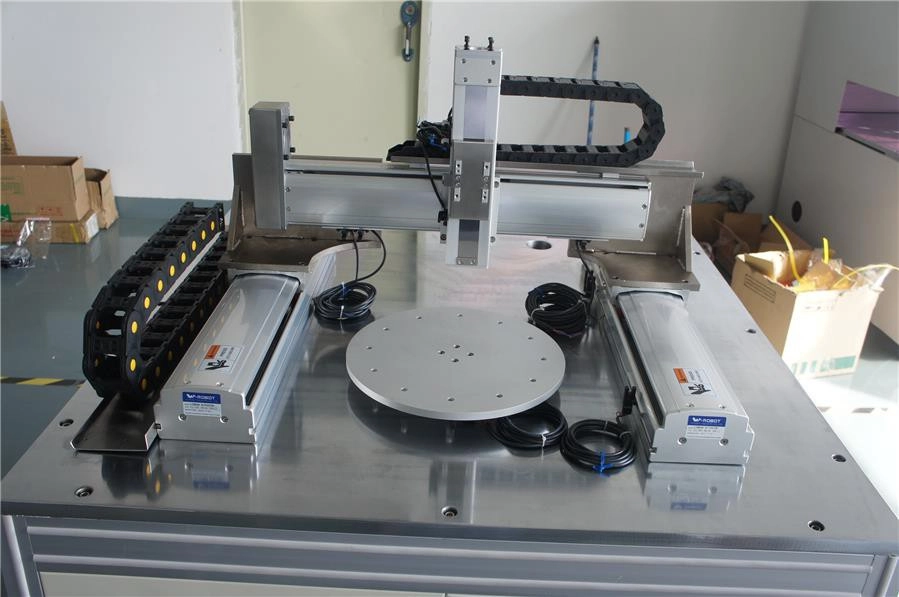

new opportunities are now available with airless, cleanroom capable features. Images are some examples of how
SMAC actuators have been combined.

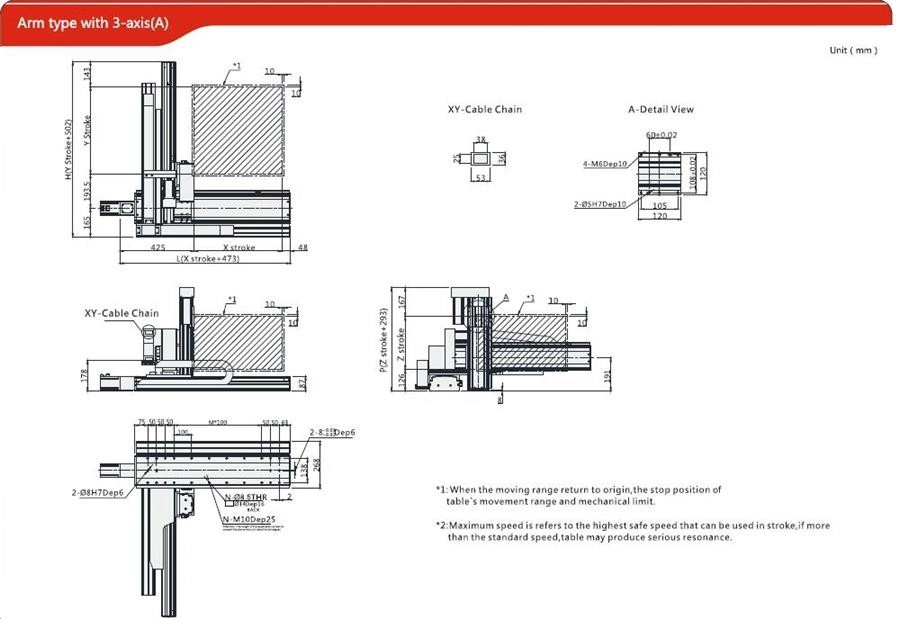

4. Production detail:
5. Product qualification:
6. Deliver, shipping and serving:
We are a supplier of pneumatic, hydraulic and electric motion solutions, have introduced multi-axis actuators
for either X-Z or X-Y motion applications.
Employing what the company says is “a one-of-a-kind two-axis system”, the unit features a single continuous belt that
serpentines around the two axes eliminating the need for a motor in the Z- or Y-axis while driving a pair of
coordinated motors in the X-axis.
These configurations, known as T-bot and H-bot within the industry, permit synchronized control for complex motion
movement profiles such as circles, ellipses and sine waves.
We are intended for medium and heavy-duty two-axis industrial applications that require flexible motion within a
An optimal solution for applications that require X-Y or X-Z distance, high-speed motion with a robust load and
moment loading capacity, our product is configured for pick and place, sorting, loading, assembly and other
material handling tasks in industries such as packaging, food and beverage and automotive.
The complete system provides distinct advantages over traditional linear actuator-based systems.
the durable pair of motors for the X-axis offer high thrust and high speeds, while the single belt system means less
overall Z-axis load and reduced X-axis motor size.
“With these new actuators, users will realize significant cost savings. The thrust and torque of both X-axis motors
converge to provide twice the thrust of a single motor in the Z-axis while the absence of a motor in the Z-axis
eliminates the need for cable tracks and expensive, flexible cable.”
Also, “a 3-axis gantry can be created simply with the addition of a single axis actuator for applications requiring
Power Self-Tracking timing belt itself is steel-reinforced and provides motion in both axes.
It is constructed to reduce noise and vibration, eliminate backlash and cogging and deliver higher thrust per unit
“Ideal for high-speed applications, it is the most innovative and efficient timing belt in the world,”
